--- title: Multi-Rag emoji: 🤖 colorFrom: blue colorTo: green sdk: docker app_file: main.py pinned: false short_description: This is the Multi-Rag Agent --- # 🧠 Multi-RAG — Advanced Multi-Modal Retrieval Augmented Generation

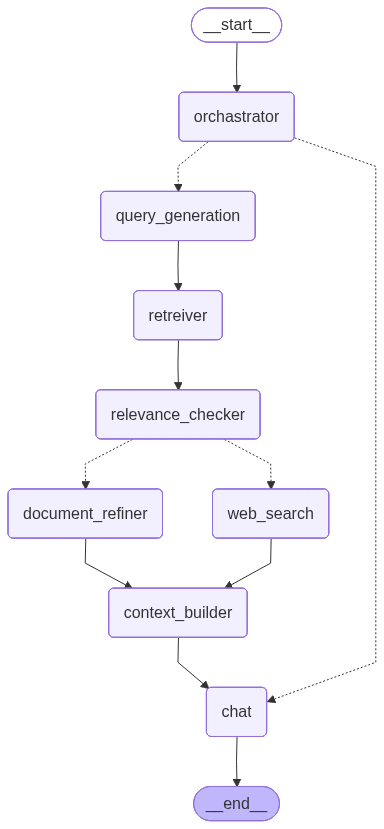

A production-grade, **session-aware multi-modal RAG system** built with LangGraph, FastAPI, and a hybrid retrieval pipeline. Upload PDFs, DOCX, TXT, or images — get intelligent, context-grounded answers powered by an adaptive agentic graph that decides when to search your documents, when to fall back to the web, and when to just chat. --- ## 📸 Agent Graph The LangGraph pipeline is fully visualized below — each node represents a stage in the decision-making workflow: ![Agent Graph Workflow](graph_visualization.png) | Node | Role | |---|---| | `orchastrator` | Routes query: DB search needed or direct chat? | | `query_generation` | Generates semantically rich retrieval queries | | `retreiver` | Hybrid FAISS + BM25 + FlashRank reranking | | `relevance_checker` | Evaluates if retrieved docs are CORRECT / AMBIGUOUS / INCORRECT | | `document_refiner` | Passes verified docs to context builder | | `web_search` | Tavily-powered fallback when docs are insufficient | | `context_builder` | Assembles multimodal context (text + tables + images) | | `chat` | Generates final Markdown response | --- ## ✨ Features - 🗂 **Multi-Format Ingestion** — PDF, DOCX, TXT, PNG/JPG/HEIF; all converted to a unified PDF pipeline - 🔍 **Hybrid Retrieval** — FAISS (dense) + BM25 (sparse) via `EnsembleRetriever`, re-ranked with FlashRank - 🧩 **Multimodal Chunks** — Extracts text, tables (HTML), and base64-encoded images from documents - 🤖 **Agentic LangGraph Workflow** — Adaptive routing with conditional edges; not just a static RAG chain - 🌐 **Web Search Fallback** — Tavily search kicks in when retrieved docs are insufficient - 💾 **Session Persistence** — Per-user thread IDs with `InMemorySaver` checkpointing; conversation history preserved - 🔐 **Auth Middleware** — Lightweight session-based authentication on every request - 🖥 **Full Web UI** — Jinja2-rendered frontend with upload flow, chat interface, and document explorer - 🐳 **Docker Ready** — Single `Dockerfile` for deployment; also supports Jenkins CI - 📝 **Rotating Logs** — Timestamped rotating log files under `logs/` --- ## 🏗 Architecture ``` Multi-Rag/ ├── main.py # Entrypoint — loads .env, starts FastAPI ├── api/ │ ├── main.py # FastAPI app, middleware, router registration │ ├── routes/ │ │ ├── upload_router.py # File upload handling │ │ ├── ingest_docs_router.py # Triggers vectorization pipeline │ │ ├── chat_router.py # Chat endpoint → LangGraph invocation │ │ ├── user_router.py # Session/thread management │ │ ├── load_conversation_router.py # Restore chat history │ │ └── frontend_router.py # Serves HTML pages │ ├── middlewares/ │ │ └── Authenticate_middleware.py │ ├── templates/ # Jinja2 HTML templates │ └── static/ # CSS / JS assets │ ├── src/ │ ├── graphs/ │ │ └── builder.py # LangGraph StateGraph definition │ ├── nodes/ │ │ └── main_nodes.py # All 8 node implementations │ ├── states/ │ │ └── Main_State.py # LangGraph State + Pydantic output schemas │ ├── pipeline/ │ │ ├── Vectiorizer_pipeline.py # Ingestion + Transformation orchestration │ │ └── GraphRunner_pipeline.py # Graph execution wrapper │ ├── components/ │ │ ├── data_ingestion.py # File-to-PDF conversion dispatch │ │ ├── data_transformation.py # PDF → chunks → FAISS vector store │ │ └── run_graph.py # graph.ainvoke() wrapper │ ├── retrievers/ │ │ └── create_retreivers.py # Hybrid retriever + FlashRank compression │ ├── prompts/ │ │ └── prompt_templates.py # All LLM prompt templates │ ├── entity/ │ │ ├── config_entity.py # Dataclass configs │ │ └── artifact_entity.py # Dataclass artifacts │ ├── llm/ │ │ └── llm_loader.py # Groq ChatGroq instantiation │ ├── memory/ │ │ └── __init__.py # InMemorySaver checkpointer │ ├── tools/ │ │ └── __init__.py # Tavily web search StructuredTool │ ├── constants/ │ │ └── __init__.py # Global constants │ └── utils/ │ ├── ingestion_utils.py # image_to_pdf, text_to_pdf, docs_to_pdf │ └── asyncHandler.py # Async decorator for uniform error handling │ ├── exception/ │ └── __init__.py # MyException with structured logging ├── logger/ │ └── __init__.py # RotatingFileHandler setup ├── Dockerfile ├── jenkins └── pyproject.toml ``` --- ## 🔄 RAG Pipeline Flow ``` User Uploads Files │ ▼ ┌─────────────────────────────────────────────────┐ │ Vectorization Pipeline │ │ │ │ File → docs_to_pdf → partition_pdf (hi_res) │ │ → chunk_by_title → FAISS + Embeddings │ │ → saved per thread_id │ └─────────────────────────────────────────────────┘ │ ▼ User Sends Chat Message │ ▼ ┌─────────────────────────────────────────────────┐ │ LangGraph Agent │ │ │ │ Orchestrator ──→ Query Generation │ │ │ │ │ Retriever (Hybrid) │ │ │ │ │ Relevance Checker │ │ ┌─────────┴────────┐ │ │ CORRECT/ INCORRECT │ │ AMBIGUOUS │ │ │ │ Web Search │ │ Document │ │ │ Refiner │ │ │ └────────┬─────────┘ │ │ Context Builder │ │ │ │ │ Chat │ └─────────────────────────────────────────────────┘ ``` --- ## ⚙️ Tech Stack | Layer | Technology | |---|---| | **LLM** | Groq (`llama-3.x` / configurable) | | **Embeddings** | `sentence-transformers/all-MiniLM-L6-v2` via HuggingFace | | **Vector Store** | FAISS (CPU) | | **Sparse Retrieval** | BM25 (`rank-bm25`) | | **Reranking** | FlashRank | | **Web Search** | Tavily (`langchain-tavily`) | | **Agent Framework** | LangGraph 1.x (`StateGraph`) | | **Orchestration** | LangChain 1.x | | **Document Parsing** | `unstructured[all-docs]` + `pdfminer-six` + `pdf2image` | | **OCR** | EasyOCR + Tesseract | | **API** | FastAPI + Uvicorn | | **Frontend** | Jinja2 + Vanilla JS | | **Memory** | LangGraph `InMemorySaver` | | **Packaging** | `uv` + `pyproject.toml` | --- ## 🚀 Getting Started ### Prerequisites ```bash # System dependencies (Ubuntu/Debian) sudo apt-get install -y \ tesseract-ocr \ libtesseract-dev \ poppler-utils \ libmagic-dev ``` ### Installation ```bash # Clone the repo git clone https://github.com/VashuTheGreat/Multi-Rag.git cd Multi-Rag # Create virtual environment with uv pip install uv uv venv source .venv/bin/activate # Install all dependencies uv sync ``` ### Environment Variables Copy `.env.example` to `.env` and fill in your keys: ```bash cp .env.example .env ``` ```env GROQ_API_KEY=your_groq_api_key TAVILY_API_KEY=your_tavily_api_key ``` ### Run ```bash uvicorn main:app --host 0.0.0.0 --port 8000 --reload ``` Navigate to `http://localhost:8000` --- ## 🐳 Docker ```bash docker build -t multi-rag . docker run -p 7860:7860 --env-file .env multi-rag ``` --- ## 📁 Supported File Types | Format | Conversion Path | |---|---| | `.pdf` | Used directly by `unstructured` | | `.docx` | `python-docx` → `fpdf2` → PDF | | `.txt` | `fpdf2` → PDF | | `.png / .jpg / .heif` | `Pillow` → PDF | --- ## 🧩 Key Design Decisions - **Adaptive Routing** — The orchestrator decides per-query whether vector search is needed, avoiding unnecessary DB calls for greetings/small talk. - **Hybrid Retrieval** — FAISS (70%) + BM25 (30%) ensemble captures both semantic and keyword relevance; FlashRank re-ranks the top results. - **Relevance Gating** — A dedicated LLM call classifies retrieved docs as `CORRECT`, `AMBIGUOUS`, or `INCORRECT` before deciding whether to use them or fall back to web search. - **Per-Thread Isolation** — Each user session gets its own `thread_id`; vector stores and artifacts are namespaced by thread to prevent cross-user data leakage. - **Multimodal Context** — The `context_builder` node assembles text, HTML tables, and base64 images extracted from document chunks into a rich multimodal prompt. --- ## 📜 License [MIT](LICENSE) --- ## 👤 Author **VashuTheGreat (Vansh Sharma)** > Built with ☕ and an unhealthy obsession with RAG pipelines.
